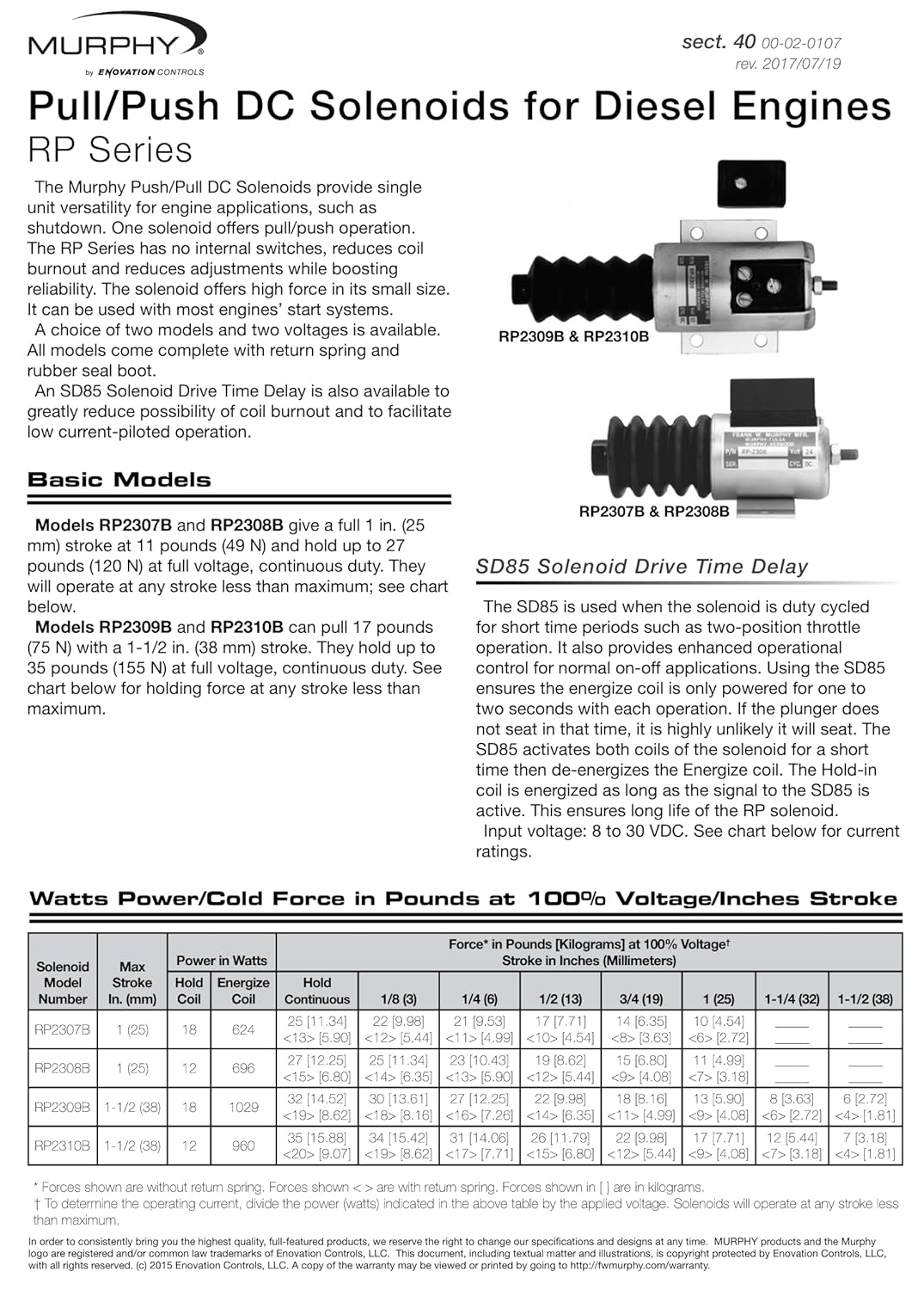

Murphy by Enovation Controls RP2310B, 24 Volt Push/Pull DC Solenoid (40700095)
Product details
| Management number | 220363015 | Release Date | 2026/05/03 | List Price | US$69.50 | Model Number | 220363015 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Murphy RP2310B Push/Pull DC Solenoid provides single unit versatility for engine applications, such as shutdown. This 24 volt model gives a one and a half inch (38 mm) stroke at 14 pounds (62N) and holds up to 34 pounds (151N) at full voltage, continuous duty. The unit will operate at any stroke less than maximum, such as 1/2 or 3/4 stroke. The RP2310B measures 7-7/32" in length with the plunger seated (coil energized), 2-7/8" in height and 3-1/8" across the base. It ships complete with return spring and rubber seal boot.
- The Murphy RP2310B is a 24 Volt Push/Pull DC Solenoid that gives a one and a half inch stroke at 14 pounds, and holds up to 34 pounds at full voltage, continuous duty.
| Terminal | Screw |
|---|---|
| Brand Name | Murphy by Enovation Controls |
| Unit Count | 1 Count |
| Part Number | RP2310B (40700095) |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | Murphy by Enovation Controls |
| Actuator Type | Plunger |
| Material Type | Rubber |
| Mounting Type | Flange Mount |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Operation Mode | manual |
| Number of Items | 1 |
| Contact Material | Copper, Brass |
| Operating Voltage | 24 Volts |
| Specification Met | Ip54 |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP541 |
